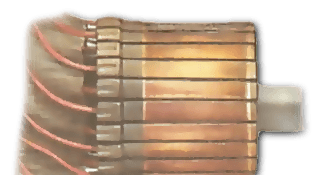

The commutator segments have a varnished look. This coating may be due to dust and water inside the casing, or to particles worn from the brushes or the mica insulation strips between segments.
Removing the brushes The carbon brushes are a sliding fit in oblong holders on the dynamo endplat...
