Oil gauge kit
Oil temperature gauges can either be mechanical or electrical. Below is an example of each type of kit. The Lucas mechanical gauge kit consists of the gauge with capillary tube and sender unit (A), and adapter nut and sealing washer (B). The TIM electrical gauge kit consists of the gauge with wiring (C) —which may be mounted via brackets and fixing screws (D) or via an adhesive pad (E) — cable ties (F), sender unit (G), adapter nut (H), and nut, washers and terminal connector (I).
The working temperature of your engine is normally kept to an optimum level by the cooling system. But there are occasions when your engine is worked harder and reaches temperatures higher than normal. This can happen, for example, when you are towing a trailer or another vehicle, or if your engine has been tuned for higher performance.
As the temperature of your engine increases, the engine oil becomes thinner and thinner. If the engine is run above normal temperature for a long time, there is a danger that the oil may become so thin that it can no longer lubricate the moving parts of the engine properly.
If this happens your engine can become seriously damaged to the point where it has to be stripped and rebuilt or replaced completely.
This video course is the best way to learn everything about cars.
Three hours of instruction available right now, and many more hours in production.
- 4K HD with full subtitles
- Complete disassembly of a sports car
Special gauge
While a water temperature gauge gives a fairly accurate reading of the engine temperature via the cooling system, it does not directly tell you much about the temperature of the engine oil. For this you need a special oil temperature gauge.
These gauges measure the oil temperature with a sender unit, similar to that used for water gauges, which fits directly into the sump pan to give an accurate reading of the temperature.
The gauges are available from accessory shops and are either mechanically or electrically operated.
Fitting an oil pressure gauge

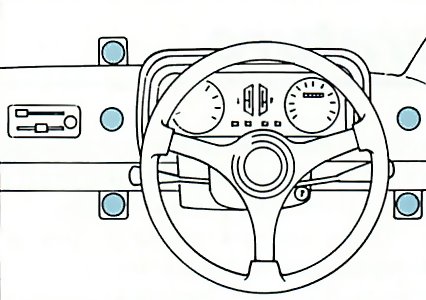

The gauges are mounted either directly into the dashboard or in a bracket suspended under the dash.
